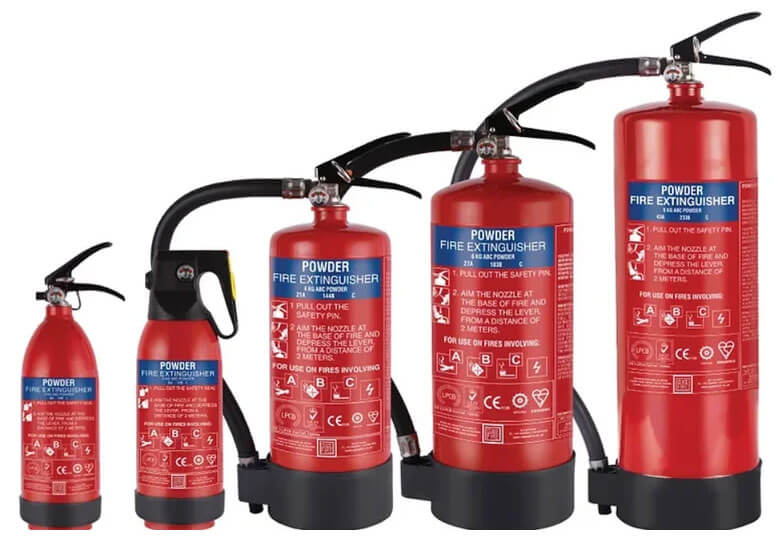

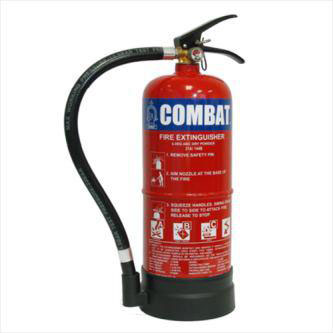

ABC Powder Type
Best Use for
Home, Office, Buildings , Warehouses, Farms, Wood Working Area etc.
| Model No. | MOD1 | MOD2 | MOD4 | MOD6 | MOD9 |
| Capacity (Kgs) | 1 | 2 | 4 | 6 | 9 |
| Type | Stored Pressure | Stored Pressure | Stored Pressure | Stored Pressure | Stored Pressure |
| Extinguishing Agent | MAP Base Powder | MAP Base Powder | MAP Base Powder | MAP Base Powder | MAP Base Powder |
| Fire Rating as PER IS:15683:2018 | "1A, 21B" | " 2A, 55B " | "3A, 89B " | "4A, 144B " | "6A, 233B" |
| Average DischargeTime (S) | >8 | >12 | >15 | >18 | >23 |
| OD(mm) | 86 | 108 | 140 | 160 | 180 |
| Filled Weight (Kg) | 2.2 | 3.5 | 6.8 | 9.5 | 13 |
| Design Standerd | CE/EN3/IS15683 | CE/EN3/IS15683 | CE/EN3/IS15683 | CE/EN3/IS15683 | CE/EN3/IS15683 |

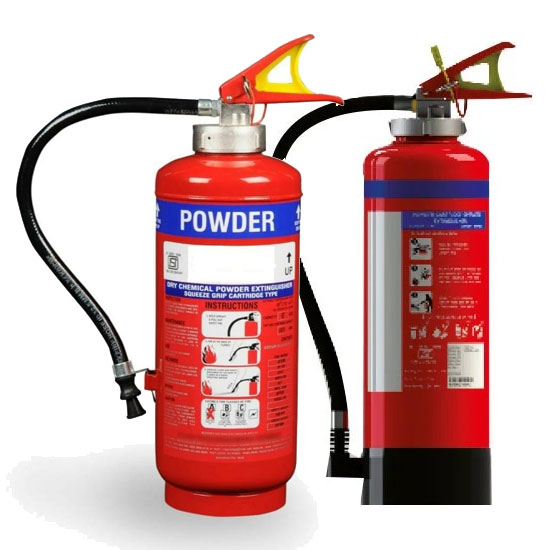

BC Powder Type
| Model No. | MOD 4-S | MOD 6-S | MOD 9-S | MODCT6 | MODCT9 |
| Capacity (Kgs) | 4 | 6 | 9 | 6 | 9 |
| Type | Stored Pressure | Stored Pressure | Stored Pressure | Cartridge | Cartridge |
| Extinguishing Agent | Sodium Bi-Carbonate | Sodium Bi-Carbonate | Sodium Bi-Carbonate | MAP Base Powder | MAP Base Powder |
| Fire Rating as PER IS:15683:2018 | 55B | 89B | 144B | "3A, 89B" | "4A, 144B" |
| Average DischargeTime (S) | >15 | >18 | >23 | >18 | >23 |
| OD(mm) | 140 | 160 | 180 | 160 | 180 |
| Filled Weight (Kg) | 6.8 | 9.5 | 13 | 11.4 | 15.8 |
| Design Standerd | CE | CE/EN3/IS15683 | CE/EN3/IS15683 | CE/EN3/IS15683 | CE/EN3/IS15683 |

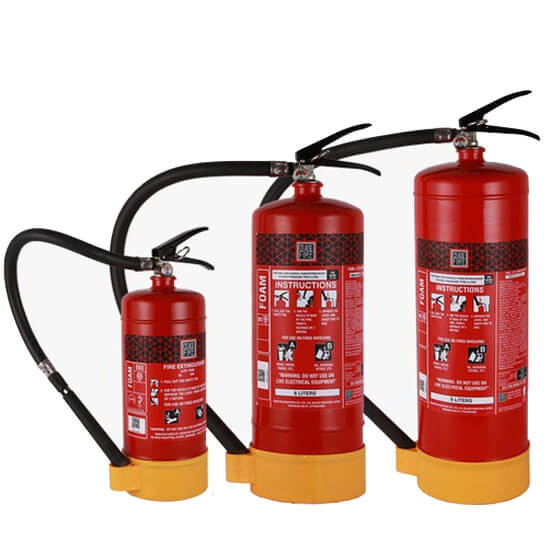

Mechanical Foam Type
| Model No. | MOD 4-S | MOD 6-S | MOD 9-S | MODCT6 |
| Capacity (Kgs) | 6 | 9 | 6 | 9 |
| Type | Stored Pressure | Stored Pressure | Cartridge | Cartridge |
| Extinguishing Agent | "Foam, AFFF" | "Foam, AFFF" | "Foam, AFFF" | "Foam, AFFF" |
| Fire Rating as PER IS:15683:2018 | "3A, 89B" | "4A, 144B" | "3A, 89B" | "4A, 144B" |
| Average DischargeTime (S) | >25 | >30 | >25 | >30 |
| OD(mm) | 160 | 180 | 160 | 180 |
| Filled Weight (Kg) | 9.5 | 13 | 9.5 | 15 |
| Design Standerd | CE/EN3 | CE/EN3/IS15683 | CE/EN3 | CE/EN3/IS15683 |

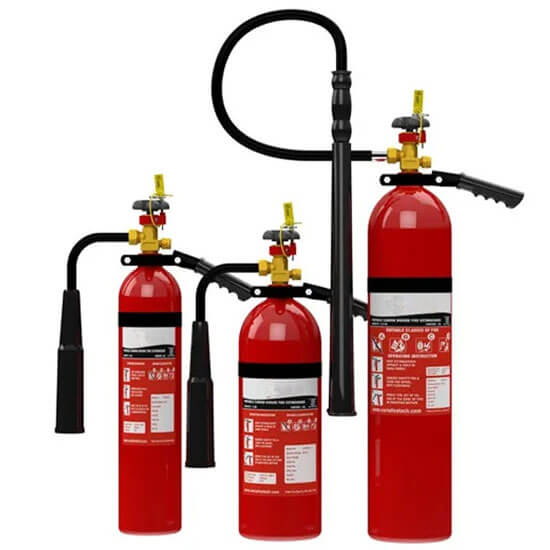

Carbon Dioxide Type
| Model No. | MCDO2 | MSDO3 | MCDO4.5 | MCDOA2 | MCDOA4.5 |
| Capacity (Kgs) | 2 | 3 | 4.5 | 2 | 4.5 |
| Type | Stored Pressure | Stored Pressure | Stored Pressure | Stored Pressure | Stored Pressure |
| Extinguishing Agent | Carbon Dioxide | Carbon Dioxide | Carbon Dioxide | Carbon Dioxide | Carbon Dioxide |
| Fire Rating as PER IS:15683:2018 | 21B | 34B | 55B | 21B | 55B |
| Average DischargeTime (S) | >8 | >10 | >15 | >8 | >15 |
| Propellent | Carbon Dioxide | Carbon Dioxide | Carbon Dioxide | Carbon Dioxide | Carbon Dioxide |
| OD(mm) | 108 | 140 | 140 | 108 | 140 |
| Filled Weight (Kg) | 9 | 12 | 16.5 | 6.2 | 11.85 |
| Design Standerd | CE/EN3/IS15683 | CE/EN3/IS15683 | CE/EN3/IS15683 | CE/EN3 | CE/EN3/IS15683 |
